ELMAK BRAND ABRASIVE BELT GRINDER

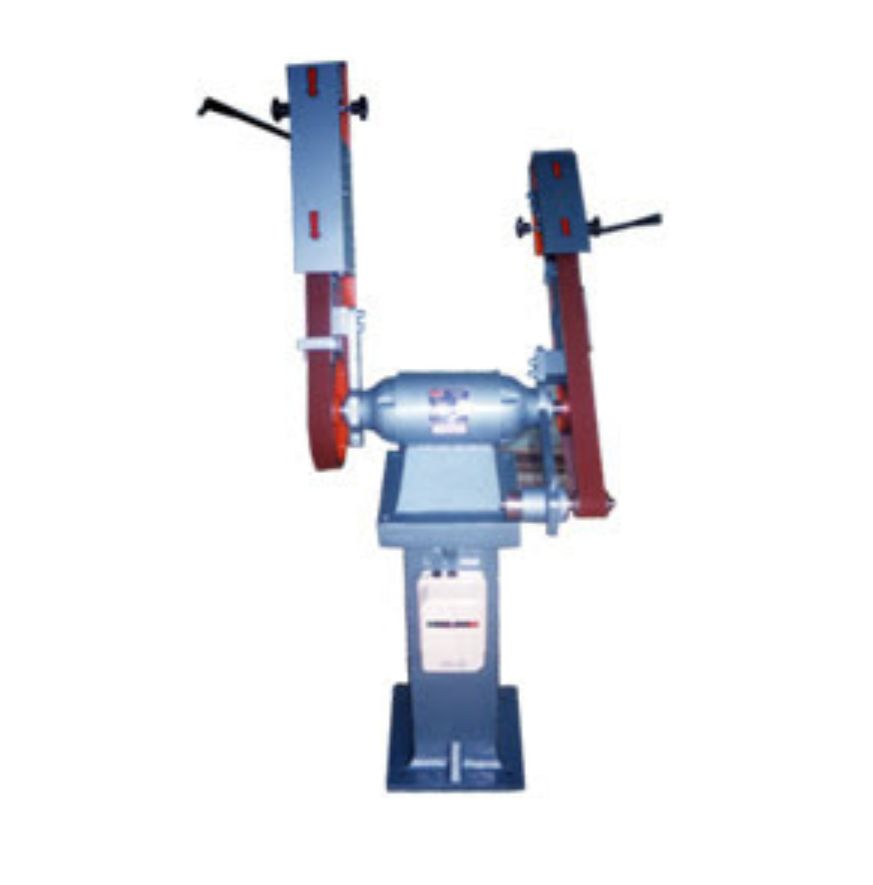

ELMAK ABRASIVE BELT GRINDER LIGHT DUTY TWO BALL BEARING DOUBLE SIDE PEDESTAL TYPE

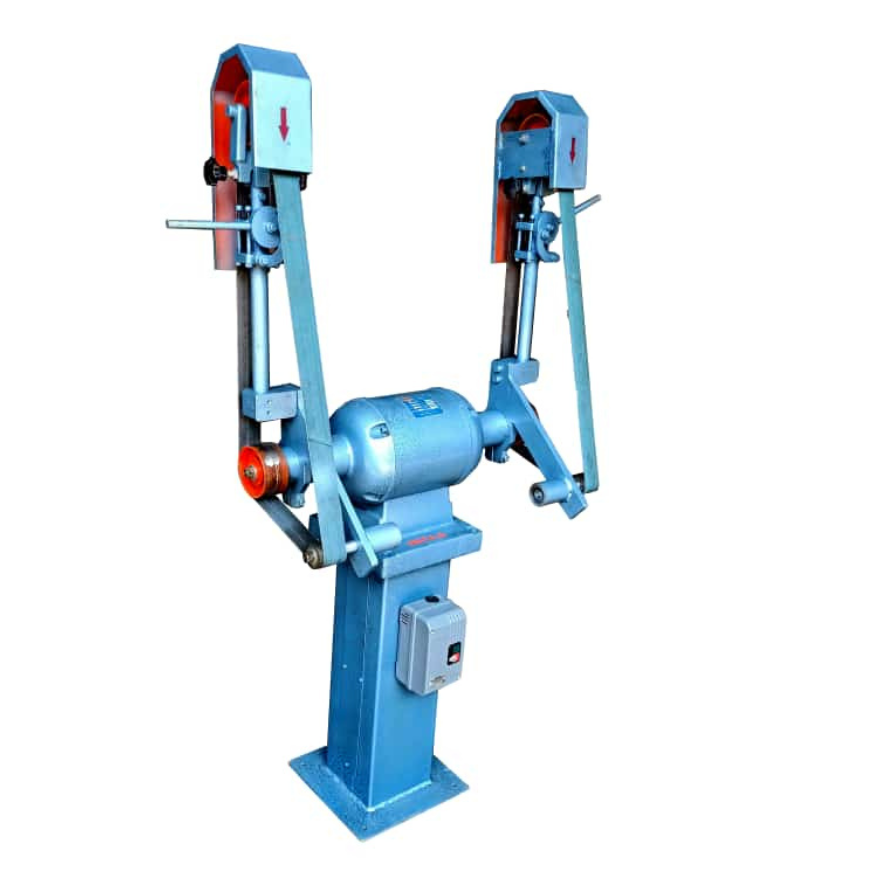

ELMAK ABRASIVE BELT GRINDER HEVY DUTY FOUR BALL BERAING WITH FULLY COVERED GOURD

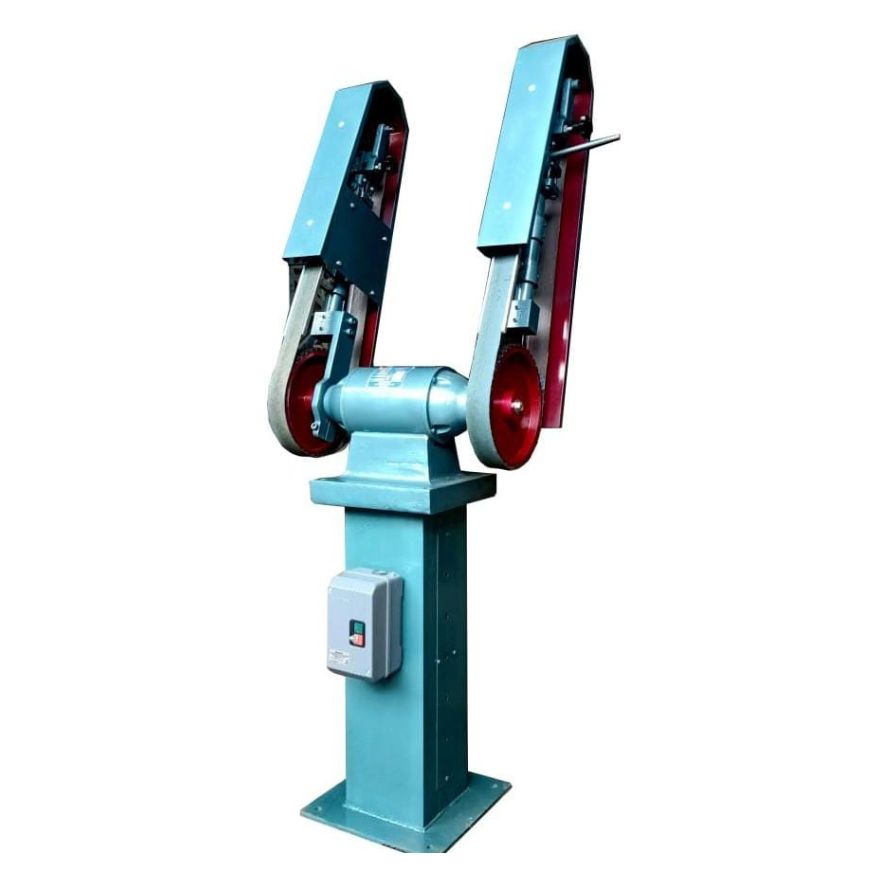

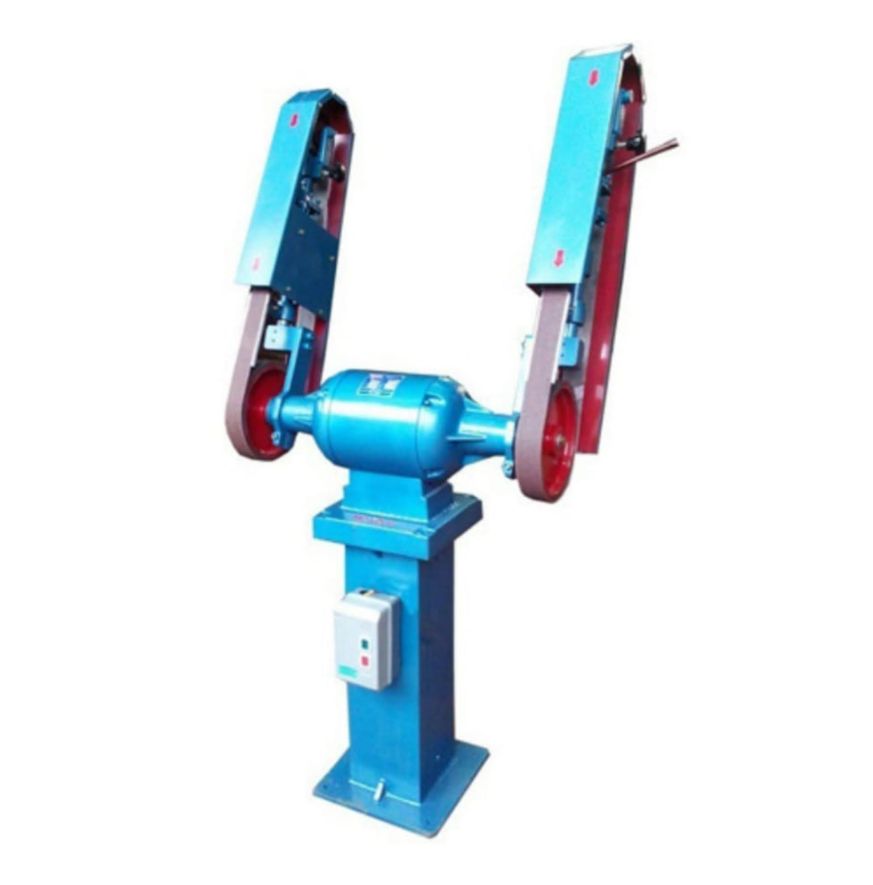

ELMAK ABRASIVE BELT GRINDER HEAVY DUTY FOUR BALL BERAING

ELMAK ABRASIVE BELT GRINDER HEAVY DUTY FOUR BALL BERAING I TYPE THREE WHEELS TYPE

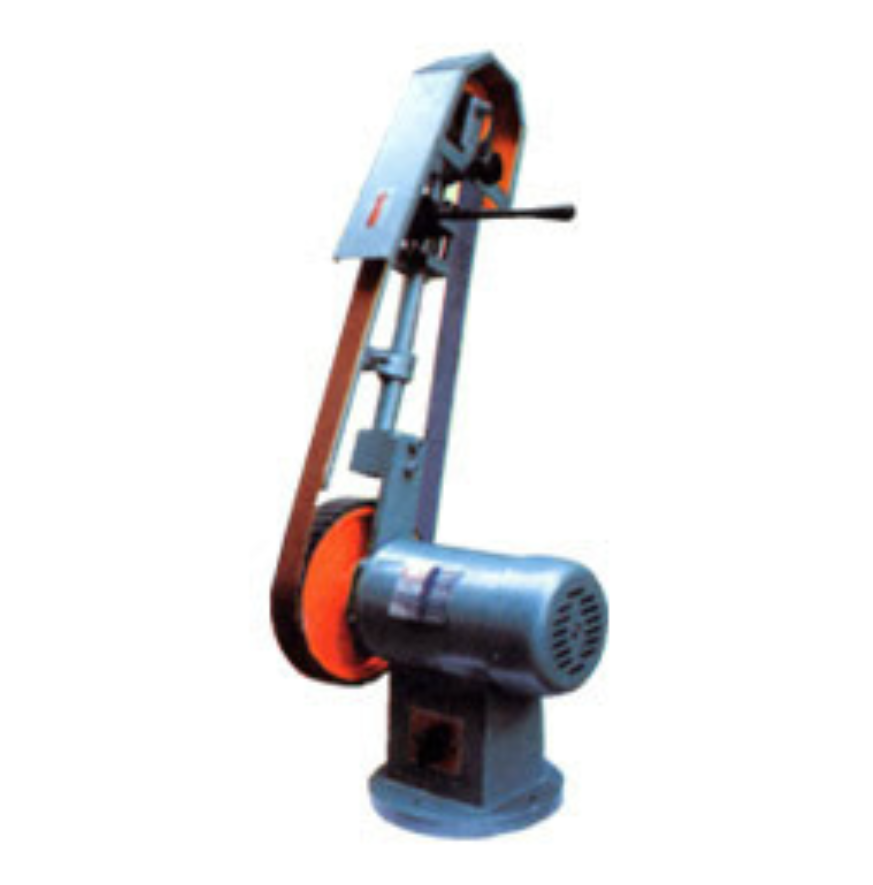

ELMAK ABRASIVE BELT GRINDER LIGHT DUTY TWO BALL BEARING I TYPE

ELMAK LETHE TYPE ABRASIVE BELT GRINDER

Versatile machine generally requested for Forge Shops, Press Shops, Ferrous & non Ferrous Foundries, Fabrication Shops, Engineering Industries, Plastic & Glass Industries, Rubber & Leather Industries and Wood Industries.

Rate of material removal is optimum. Excellent ground finish obtained.
High rate of production.
Use of best quality stamping and diecast rotors.
Dynamically Balanced rotor minimize vibrations and ensure smooth running.
Telescopic tendering arm for belt tensioning.
Construction of the machines are made sturdy and robust to offer vibration free performance. .Machine provided with one no. Abrasive Belt, Serrated Rubber Contact Wheel , Rotary Switch /Starter and Safety Belt Guard.
Machines available in two models i.e. Single ended and Double ended.
Machines are available in Bench type or Pedestal type.
Combination Multipurpose machine is with abrasive belt assembly on one side and Grinding Wheel or Tapered Spindle on other side.
All machines are subject to rigid quality control tests.
Machines of different voltage and different frequency can be supplied against specific orders.
All machines carry warranty (except Ball Bearings) against any manufacturing defect as per the warranty terms prevailing of the company. No warranty for wear and tear items.

Specifications For Abrasive Belt Grinders

Model	Type	Description	No. Of Ball Bearings	H.P.	P.H.	RPM	Centre Hight	Centre Distance	Wheel Size	Belt Size
ABG-1	BENCH	SINGLE SIDE	TWO	1	1	2800	195		200 X 50	50 X 2000
ABG-11	BENCH	SINGLE SIDE	TWO	1	3	2800	195		200 X 50	50 X 2000
ABG-12	BENCH	SINGLE SIDE	TWO	2	3	2800	195		250 X 50	50 X 2000
ABG-13	BENCH	SINGLE SIDE	TWO	3	3	2800	195		250 X 50	50 X 2000
ABG-21	BENCH	DOUBLE SIDE	TWO	2	3	2800	195	495	250 X 50	50 X 2000
ABG-22	BENCH	DOUBLE SIDE	TWO	3	3	2800	195	495	250 X 50	50 X 2000
ABG-27	BENCH	DOUBLE SIDE	FOUR	5	3	2800	170	950	250 X 50	50 X 2000
ABG-61	PEDESTAL	SINGLE SIDE	TWO	1	3	2800	935		200 X 50	50 X 2000
ABG-62	PEDESTAL	SINGLE SIDE	TWO	2	3	2800	935		250 X 50	50 X 2000
ABG-63	PEDESTAL	DOUBLE SIDE	TWO	2	3	2800	935	495	250 X 50	50 X 2000
ABG-64	PEDESTAL	SINGLE SIDE	TWO	3	3	2800	935	495	250 X 50	50 x 2000
ABG-65	PEDESTAL	DOUBLE SIDE	TWO	3	3	2800	935	495	250 X 50	50 x 2000
ABG-71	PEDESTAL	DOUBLE SIDE	FOUR	2	3	2800	935	730	250 X 50	50 X 2000
ABG-72	PEDESTAL	DOUBLE SIDE	FOUR	3	3	2800	935	730	250 X 50	50 X 2000
ABG-81	PEDESTAL	DOUBLE SIDE	FOUR	3	2.25	2800	935	730	250 X 50	50 X 2000
ABG-82	PEDESTAL	DOUBLE SIDE	FOUR	5	3	2800	935	950	250 X 50	50 X 2000
ABG-83	PEDESTAL	DOUBLE SIDE	FOUR	7.5	5.5	2800	935	950	250 X 50	50 X 2000
ABG-111	BENCH	LATHE MOUNTING	TWO	1	1	2800	250		200 X 50	50 x 2000
ABG-131	BENCH	LATHE MOUNTING	TWO	1	3	2800	250		200 X 50	50 x 2000
ABG-132	BENCH	LATHE MOUNTING	TWO	2	3	2800	250		250 X 50	50 x 2000
ABG-133	BENCH	LATHE MOUNTING	TWO	3	3	2800	250		250 X 50	50 x 2000
ABG-231	BENCH	COMBINATION	TWO	2	3	2800	195		250 X 50	50 x 2000
ABG-232	PEDESTAL	COMBINATION	TWO	2	3	2800	195		250 X 50	50 x 2000
ABG-241	BENCH	COMBINATION	TWO	2	3	2800	195		250 X 50	50 X 2000
ABG-242	PEDESTAL	COMBINATION	TWO	2	3	2800	195		250 X 50	50 X 2000
ABG-151	PEDESTAL	COMBINATION	TWO	2	3	2800	935		250 X 50	50 X 2000
ABG-152	PEDESTAL	COMBINATION	TWO	3	3	2800	935		250 X 50	50 X 2000
ABG-153	PEDESTAL	COMBINATION	TWO	5	3	2800	935		250 X 50	50 X 2000
ABG-154	PEDESTAL	COMBINATION	TWO	75	3	2800	935		250 X 50	50 X 2000
ABG-155	PEDESTAL	COMBINATION	TWO	10	3	2800	935		250 X 50	50 X 2000
ABG-155C	PEDESTAL	COMBINATION	TWO	5	3	2800	935		250 X 50	50 X 2000
ABG-156	PEDESTAL	COMBINATION	TWO	15	3	2800	935		250 X 50	50 X 2000

ELMAK BRAND ABRASIVE BELT GRINDER

Specifications For Abrasive Belt Grinders

General Tolerance ± 0.50 % Dimensions, details etc. are subject to change as the quality of machines is improved constantly

ABG-231 & ABG-232 are Combination Machines with Grinding Wheel on one side and Belt Assembly on other side.

ABG-241 & ABG-242 are Combination Machines with Polishing Spindle on one side and Belt Assembly on other side.
