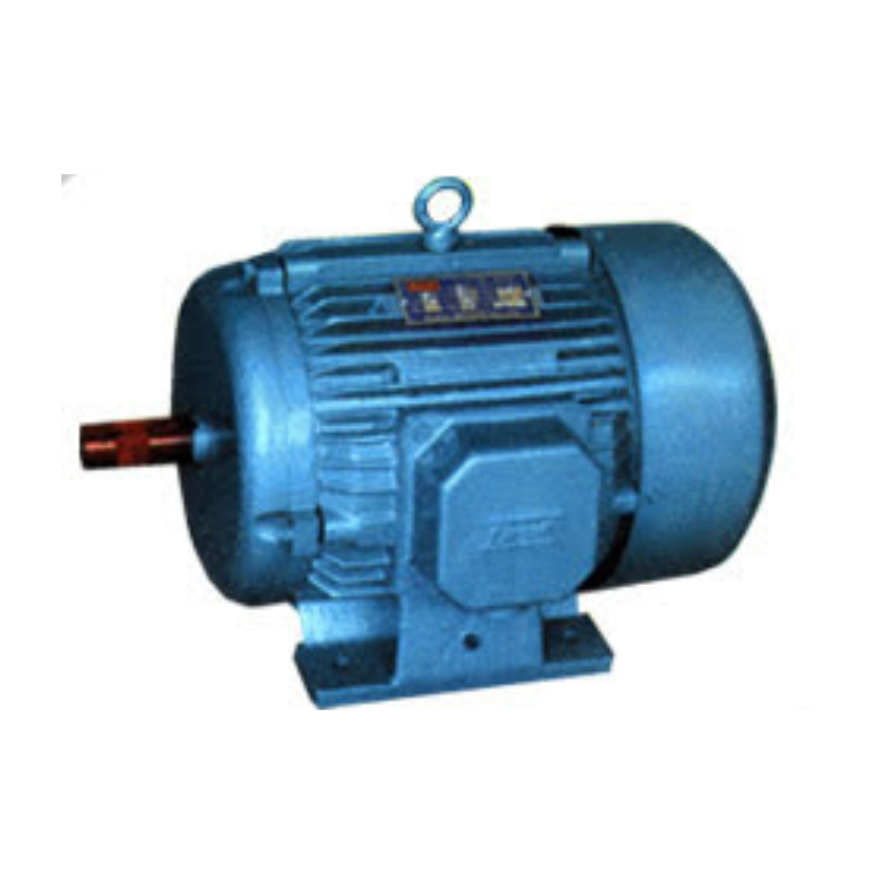

ELMAK FOOT MOUNTED ELECTRIC MOTORS

Manufacturer of a wide range of products which include Brake Motor, Foot Mounted Electric Motors, Flange Mounted Electric Motor and Electric Foot Cum Flange Mounted Motor.

  • C. I. Casting of high grade quality
  • Use of best quality stamping and die cast rotor.
  • Motor winding are specially insulated and impregnated manufacturer & supplier of new items & havey duty abrasive belt grinder. Our product range also comprises of abrasive belt grinders, rubber contact wheel and electrical motors.
  • Three phase motors conforms to is 325/1978 :
  • Use of high quality grease for lubrication, recommended lithon 3 of hp or equivalent.
  • Electric motors are very efficient and automatic control allows for automatic stop and start functions.
  • all motors are subject to rigid quality control tests.
  • Motors of different voltage and different frequency/can be supplied against specific against specific orders.
Request A Quote

Specifications IN MM For Foot Mounted

Frame
Size		 A B C H K L LC AA AB BB BA AC HA HD LO AD D
DA		 E
EA		 F
FA		 GA
GC		 G
CB		 Approx.
Weight
in Kg.		 Shipping
Volume
MP.
56 90 71 36 56 5.8 192 217 28 117 90 27 108 7 146 - 90 9 20 3 10.2 7.2 7 0.008
63 100 80 40 63 7 210 238 35 125 106 28 115 10 158 - 95 11 23 4 12.5 8.5 8 0.010
71 112 90 45 71 7 240 275 35 140 112 35 140 10 176 - 105 14 30 5 16 11 11 0.013
80 125 100 50 80 10 277 322 38 160 130 40 162 13 161 - 128 19 40 6 21.5 15.5 16 0.016
90S 140 100 56 90 10 312 369 37 165 132 45 163 14 177 - 135 24 50 8 27 20 20 0.020
90L 140 125 56 90 10 337 394 37 175 157 45 173 14 177 - 135 24 50 8 27 20 24 0.021
100L 160 140 63 100 12 370 437 42 200 170 50 195 14 245 193 162 28 60 8 31 24 33 0.035
112M 190 140 70 112 12 397 464 50 225 175 57 226 14 285 200 178 28 60 8 31 24 48 0.051
132S 216 140 89 132 12 450 540 55 258 176 60 260 18 320 239 198 38 80 10 41 33 85 0.070
132M 216 178 89 132 12 488 578 55 258 214 60 260 18 320 258 198 38 80 10 41 33 90 0.075
160M 254 210 108 160 15 580 700 72 320 260 78 310 25 390 323 240 42 110 12 45 37 130 0.024
160L 254 254 108 160 15 624 744 72 320 304 78 310 25 390 345 240 42 110 12 45 37 150 0.0132
