Elmak Motors

C.I. Casting of high grade quality.
Use of best quality stamping and Die cast rotor.
Use of SKF or Equivalent Double Sealed Ball Bearings.
Motor Winding are specially insulated and impregnated with High Grade Insulating Varnish to Withstand Humid and Tropical Climate.
Dynamically balanced Rotor minimise vibrations and ensure smooth running.
Each machine provided with Rotory Switch.
All Bench polishers equiped with reversly threded adoptors to take buffing mops.
Rotor fans provided to minimise rise in temperature.
All machines are subject to rigid quality control tests.
Machines of different voltage and different frequency can be supplied against specific orders.
All machines carry warranty (except Ball Bearings) against any manufacturing defect as per the warranty terms prevailing of the company. No warranty for wear and tear items.

Request A Quote

Model	H.P	K.W	R.P.M	Ph.	"S"	A	B	C	D	E	F	G	H	TH	I	J	K	BS	Approx. Nett WT. in Kg.
ELMAK-71	0.25	0.18	3000	1	110	130	130	108	108	8	-	45	115	170	353	232	106	170	7
ELMAK-73	0.33	0.25	3000	1	225	230	233	204	204	10	23	75	170	250	443	195	162	243	21
ELMAK-75	0.50	0.37	3000	1	225	230	233	204	204	10	23	75	170	250	443	195	162	243	21
ELMAK-77	0.75	0.55	3000	1	225	227	232	200	205	10	23	75	200	279	466	218	162	230	25
ELMAK-79	1.00	0.75	3000	1	225	227	232	200	205	10	23	75	200	279	466	218	162	230	26
ELMAK-74	0.50	0.37	3000	3	225	230	233	204	204	10	23	75	170	250	443	195	162	243	19
ELMAK-76	0.75	0.55	3000	3	225	227	232	200	205	10	23	75	200	279	466	218	162	230	21
ELMAK-78	1.00	0.75	3000	3	225	227	232	200	205	10	23	75	200	279	466	218	162	230	22

Model	H.P	K.W	R.P.M	Ph.	"S"	A	B	C	D	E	F	G	H	TH	I	J	K	BS	Approx. Nett WT. in Kg.
ELMAK-81	0.25	0.18	3000	1	110	130	130	108	108	8	-	45	115	170	474	232	106	170	8
ELMAK-83	0.33	0.25	3000	1	150	230	233	204	204	10	23	68	170	250	596	195	162	168	21
ELMAK-85	0.50	0.37	3000	1	150	230	233	204	204	10	23	68	170	250	596	195	162	168	21
ELMAK-87	0.75	0.55	3000	1	150	227	232	200	205	10	23	68	200	279	596	218	162	155	26
ELMAK-89	1.00	0.75	3000	1	150	227	232	200	205	10	23	68	200	279	596	218	162	155	27
ELMAK-84	0.50	0.37	3000	3	150	230	233	204	204	10	23	68	170	250	596	195	162	168	20
ELMAK-86	0.75	0.55	3000	3	150	227	232	200	205	10	23	68	200	279	596	218	162	155	22
ELMAK-88	1.00	0.75	3000	3	150	227	232	200	205	10	23	68	200	279	596	218	162	155	23

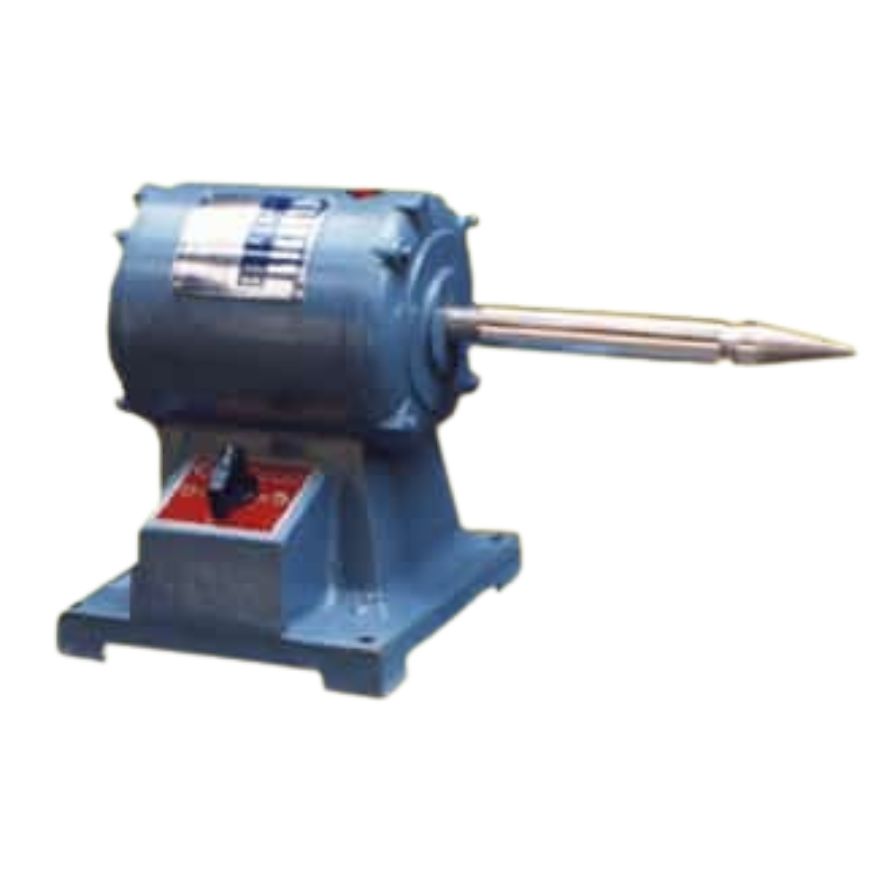

Jewellery Polishers
