ELMAK FLEXIBLE SHAFT GRINDERS

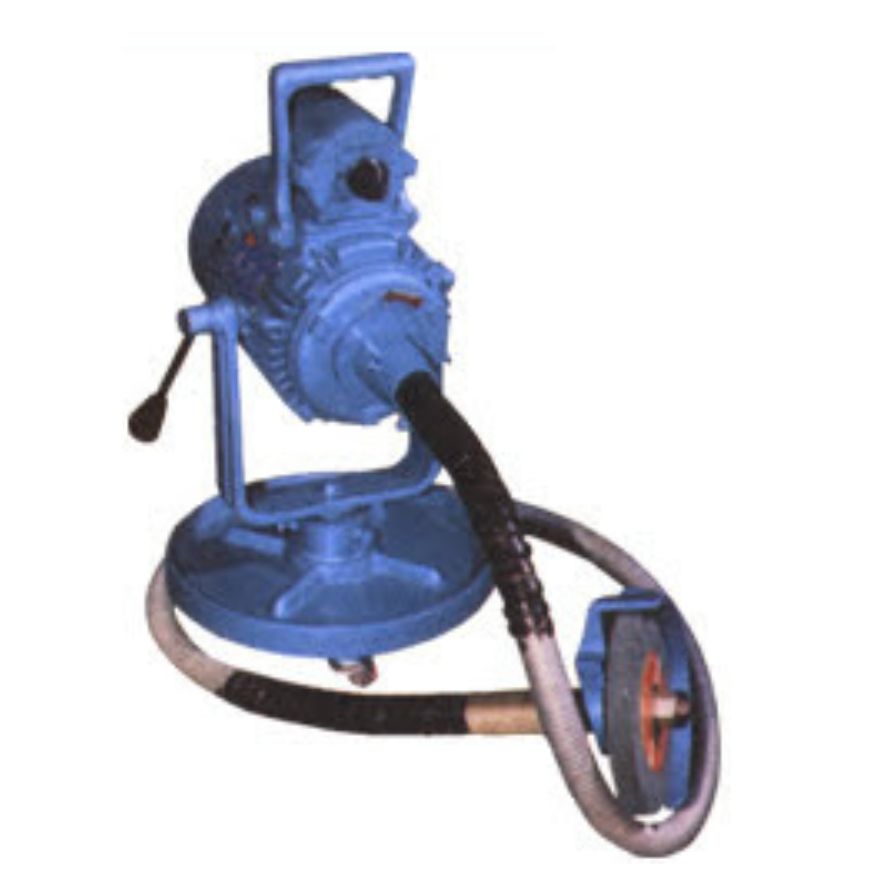

"Flexible Shaft Grinding machine is widely used in Fabrication Workshops, Foundries and heavy industries. It is very suitable for heavy and or lengthy jobs where it is not possible to lift the job or get the same close to the grinding machine.. Machine is mounted on Castor Wheels and can be easily moved around close to the job."
- Use of best quality stamping and diecast rotors. Dynamically Balanced rotor minimise vibrations and ensure smooth running
- Construction of the machines are made sturdy and robust to offer vibration free performance. Machine provided with one no. Flexible Shaft, Wheel Guard and Coarse Grinding Wheel. Collet attachment for mounted point grinding wheels can also be supplied at extra cost
- Use of high quality grease for lubrication. RECOMMENDED USE OF GREASE LITHON3 OR EQUIVALENT.
- All machines are subject to rigid quality control tests.
- Machines of different voltage and different frequency can be supplied against specific orders.
- All machines carry warranty (except Ball Bearings and flexible shaft) against any manufacturing defect as per the warranty terms prevailing of the company. No warranty for wear and tear items.
Specifications For Flexible Shift Grinders
|
Model |
H.P |
K.W |
Volts |
Phase |
R.P.M |
Shaft Length |
Wheel Size |
Approx. Weight in Kgs |
|---|---|---|---|---|---|---|---|---|
|
ELMAK-13 |
0.50 |
0.37 |
220 |
1 |
2800 |
2 |
100 |
31 |
|
ELMAK-18 |
0.50 |
0.37 |
415 |
3 |
2800 |
2 |
100 |
30 |
|
ELMAK-15 |
1 |
0.75 |
220 |
1 |
2800 |
2 |
150 |
36 |
|
ELMAK-20 |
1 |
0.75 |
415 |
3 |
2800 |
2 |
150 |
31 |
|
ELMAK-22 |
2 |
1.50 |
415 |
3 |
2800 |
3 |
150 |
39 |
|
ELMAK-25 |
3 |
2.25 |
415 |
3 |
2800 |
3 |
150 |
50 |
