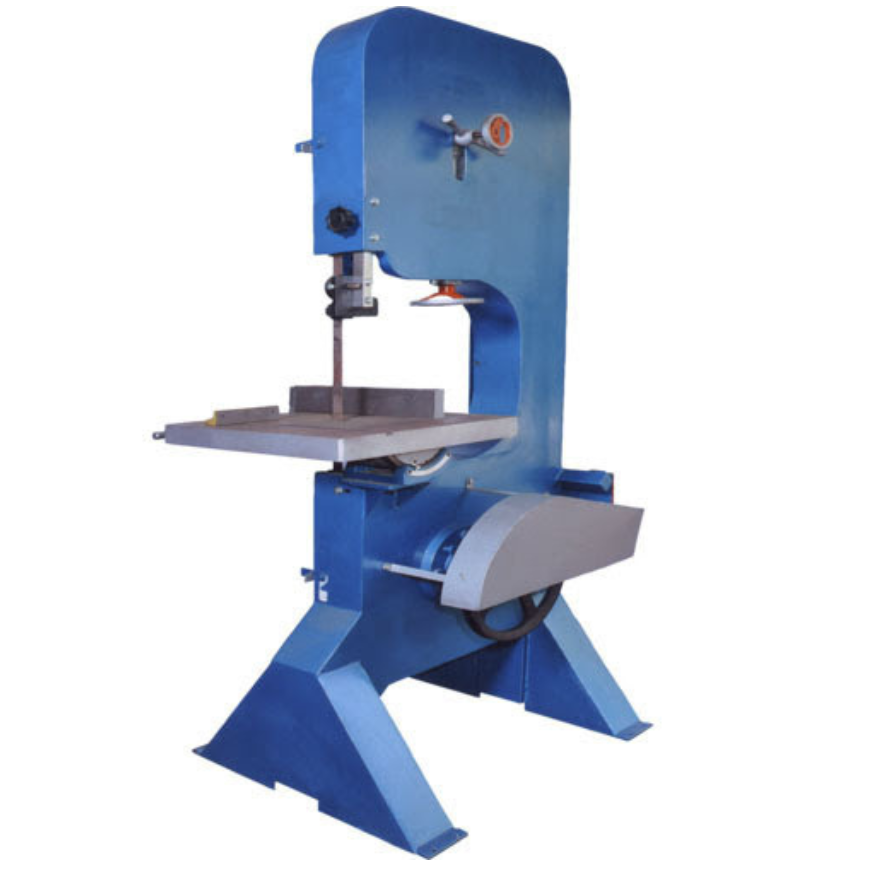

ELMAK Bandsaw Machine

  • They are used to cut metal, plastic, plywood, and other materials.
  • We are pleased to introduce our self as one of the largest Exporter, Manufacturer & Supplier of ITM-460LMGS Semi Automatic Double Column Bandsaw Machine.
  • High precision Cutting: Rigid structure to reduce vibration.
  • Smooth Cutting Surface: After cut-off and before the saw blade returns. the finished work-piece moves forward and the raw material moves backward. Therefore. no knife scratch is left on the work-piece to ensure a smooth cutting surface.
  • The bandsaw machines are very much beneficial in cutting the logs uniformly and precisely.
  • When it is about making irregular cuts and sharp cuts, then bandsaw machines are very much beneficial are the bandsaw machines
  • The purpose of band saw machine is to cut variety of material. The different nature of band saw ensures that right equipment is used at right time.
  • High/low speed selection for excellent results in both hard and soft wood
  • Anti-restart function prevents accidental startup for safety. (for countries where regulations require it)

Specifications For Bandsaw Machine

Model

MAXIMAM THROAT CAPACITY

MAXIMAM HIGHT CAPACITY

DAI OF SAW WHEELS

SPEED OF WHEELS FOR
CUTTING METAL

SIZE OF THE TILTING
TABLE [45]DIGREE

POWER REQUIRED/RPM

ELMAK-12

10INCH

5.5INCH

12INCH

5595180

12INCHX12INCH

0.5HP/1440

ELMAK-14

13INCH

6.5INCH

14INCH

55,95,180R.P.M.

14INCHX14INCH

1HP/1440

ELMAK-18

17INCH

8INCH

18INCH

55,95,180 R.P.M.

18INHX18INCH

2HP/1440

ELMAK-24

23INCH

12INCH

24INCH

42,17,85 R.P.M.

24INCHX24INCH

3HP/1440

ELMAK-30

29INCH

14INCH

30INCH

42,70,85 R.P.M.

30INCHX30INCH

5HP/1440

ELMAK-36

39INCH

16INCH

36INCH

31,49,80 R.P.M.

36INCHX36INCH

5HP/1440

General Tolerance ± 0.50 %
Dimensions, details etc. are subject to change as the quality of machines is improved constantly.
